DERBY 4F DRAWINGS

DERBY 4F DRAWINGS
  Zoom
Sheet number: Complete SetSheet number: SHEET 1Sheet number: SHEET 2Sheet number: SHEET 3
Sheet number: SHEET 4Sheet number: SHEET 5Sheet number: SHEET 6

Image for display purposes only. Actual item may vary
Our Price:  £40.05(£33.38 Exc. VAT)Earn 40 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
+


Part Number:  7/084
Brand:  Don Young

Don young designed locomotives


  • Complete set of drawings
  • 6 sheets
  • Supplied folded unless otherwise selected

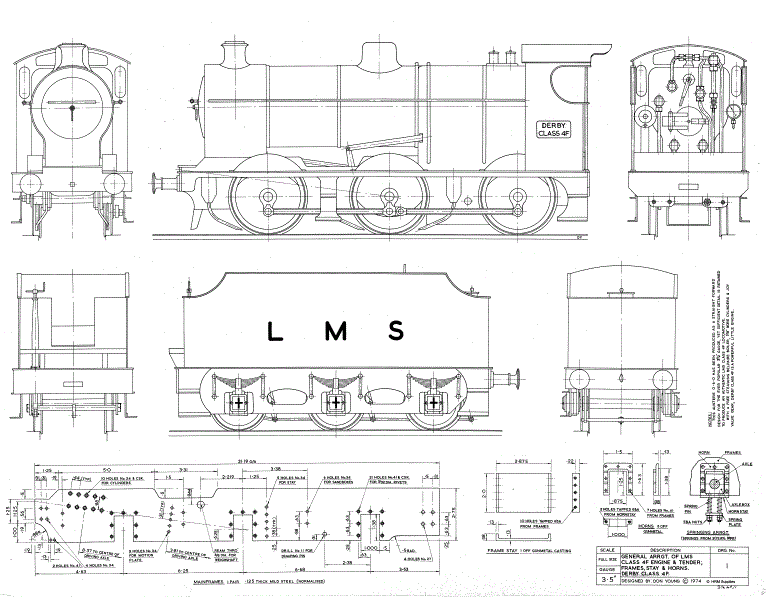

  • Sheet 1 - GA of engine & tender, frames, stays & horns
  • Sheet 2 - Wheels, axles, axleboxes, cylinders, feedpump, beams & coupling rods
  • Sheet 3 - Cylinder details, crosshead & slide bars, motion details & chassis arrangement
  • Sheet 4 - Reverser, buffers & couplings, sandboxes, lubricator, boiler arrangement & part details
  • Sheet 5 - Smokebox, regulator, cab layout, grate & ashpan, boiler mountings & erection details
  • Sheet 6 - Running boards, steps, cab sheets & roof, whistle, dome & tender details to complete
