LUCKY 7 DRAWINGS

25% off
LUCKY 7 DRAWINGS
  Zoom

Image for display purposes only. Actual item may vary
Our Price:  £87.68
List Price:  £116.91
Saving Of:  £29.23 (25%)
(£73.07 Exc. VAT)Earn 87 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
+


Part Number:  13/501
Brand:  Don Young

Don young designed locomotives

Save 25% off all drawings until end of November


  • Complete set of drawings
  • 19 sheets
  • Supplied folded unless otherwise selected

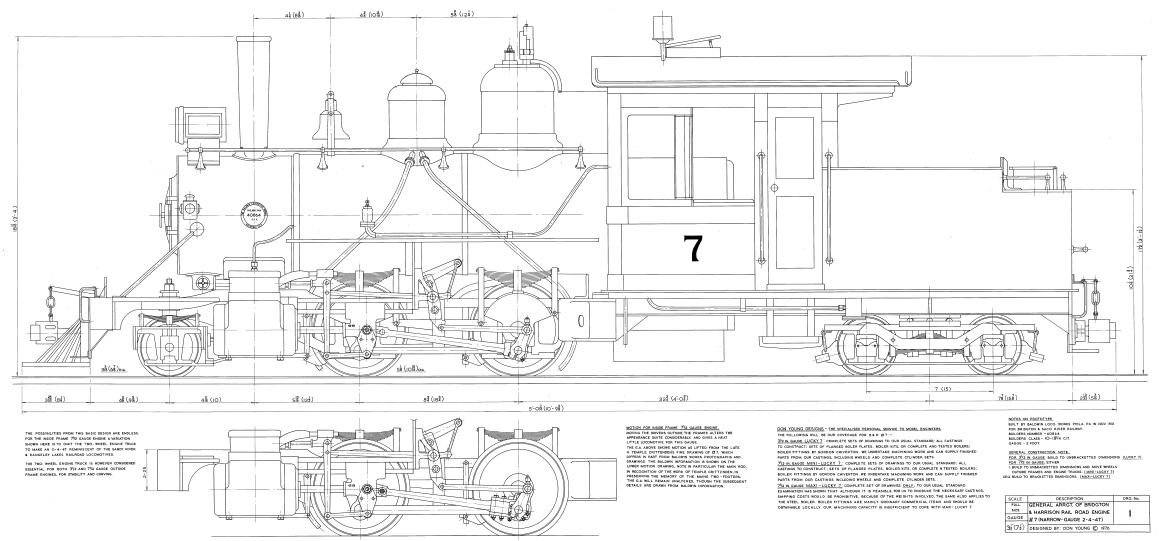

  • Sheet 1 - GA of locomotive, arrangement of motion for Mini-Lucky 7
  • Sheet 2 - End views of locomotive, bar frames, frame details & idlers
  • Sheet 3 - Cylinders, drivers, axles & journal boxes, crankpins, pivot stay
  • Sheet 4 - Mainframes plan, pilot & beam, joint casting, smokebox saddle, front running board & part spring detail
  • Sheet 5 - Spring rigging & 2-wheel engine truck, park brake gear details
  • Sheet 6 - Foundation brake gear, main & side rods, cylinder drain valves
  • Sheet 7 - Valve gear arrangement & part details, motion plate stay, crosshead & guide, thread conversion chart
  • Sheet 8 - Remaining valve gear details, reverse lever & lubricator
  • Sheet 9 - Copper boiler, inner dome, steam pipe & throttle stuffing box
  • Sheet 10 - Steel boiler, inner dome, steam pipe & throttle stuffing box
  • Sheet 11 - Smokebox arrangement & part details, main steam valve, exhaust nozzle & smokebox stack
  • Sheet 12 - Remaining smokebox details, bell, sandbox, dome, safety valves, cab arrangement & part details
  • Sheet 13 - Throttle & cab boiler fittings
  • Sheet 14 - Rear sub-frame, back bumper & grab rail, tank floor plate
  • Sheet 15 - 4-wheel trailing truck
  • Sheet 16 - 4-wheel truck brake, whistle, side running boards, back bunker step, MAXI fire door
  • Sheet 17 - Boiler erection details, grate, ashpan, damper, blow-off valves, cab strutcure
  • Sheet 18 - Tank & coal bunker, handpump, cab roof & ventilator
  • Sheet 19 - Remaining cab details, double acting feed pump
