HUNSLETTE DRAWINGS

HUNSLETTE DRAWINGS
  Zoom
Sheet number: Complete SetSheet number: Sheet 1Sheet number: Sheet 2Sheet number: Sheet 3

Image for display purposes only. Actual item may vary
Our Price:  £19.77(£16.48 Exc. VAT)Earn 19 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
+


Part Number:  13/301
Brand:  Don Young

Don young designed locomotives


  • Complete set of drawings
  • 3 sheets
  • Supplied folded unless otherwise selected

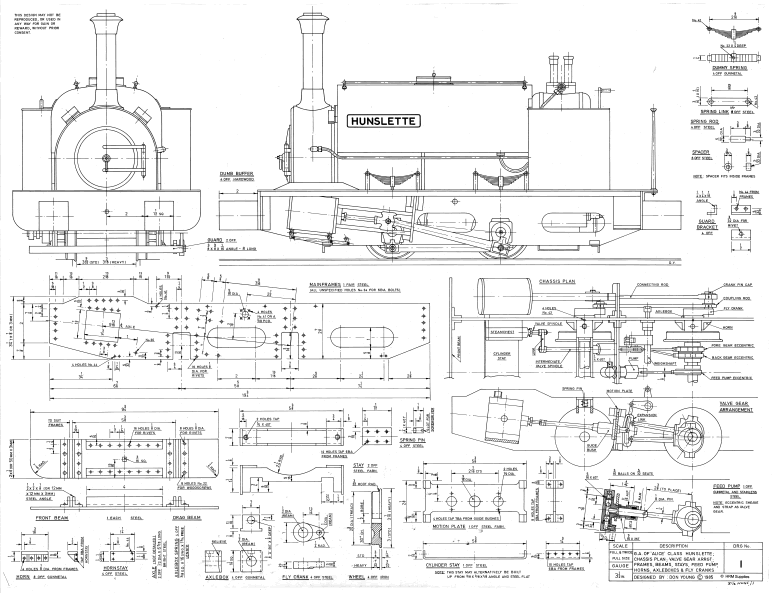

  • Sheet 1 - GA of engine, chassis plan, valve gear arrangement, frames, beams, stays, feed pump, horns, axleboxes & fly cranks
  • Sheet 2 - Cylinders, motion plate, valve gear, reverser & boiler
  • Sheet 3 - Smokebox, saddle tank, draincocks, lubricator, platework & fittings

Hunslette 0-4-0 narrow gauge locomotive in 3 1/2" gauge.  A simple and robust locomotive design by Don Young. An ideal and straightforward project for beginners
