MAISIE DRAWINGS

Image for display purposes only. Actual item may vary

Our Price: £9.90(£8.25 Exc. VAT)Earn 9 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders

–+

Sheet number:

Part Number: 10/044_1
Brand: LBSC

LBSC designed locomotives

Information

Complete set of drawings
Individual drawings available

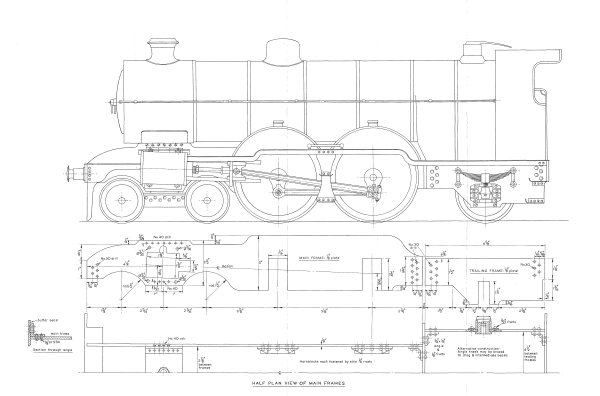

Sheet 1 - GA, main frames
Sheet 2 - D&C wheels & axles, trailing wheels & axles, buffer & drag beams, main horns & axleboxes, bogie details, connecting & coupling rods
Sheet 3 - Boiler details
Sheet 4 - Valve gear details, cylinder details, reverser
Sheet 5 - Smokebox & superheater details, ashpan & grate, feedpump, mechanical lubricator
Sheet 6 - Tender, cab details
Sheet 7 - Modified boiler

4-4-2 GNR Atlantic Tender Loco. Designed by LBSC as a miniature replica of the Great Northern Railway's "Large Atlantic" class. Designed in Model Engineer Vol. 72-76
