ST CHRIS DRAWINGS

25% off
ST CHRIS DRAWINGS
  Zoom
Sheet number: Complete SetSheet number: SHEET 1Sheet number: SHEET 2Sheet number: SHEET 3
Sheet number: SHEET 4Sheet number: SHEET 5Sheet number: SHEET 6

Image for display purposes only. Actual item may vary
Our Price:  £28.67
List Price:  £38.22
Saving Of:  £9.55 (25%)
(£23.89 Exc. VAT)Earn 28 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
–+


Part Number:  8/201
Brand:  Don Young

Share

Don young designed locomotives

Save 25% off all drawings until end of November

  • 6 Sheets

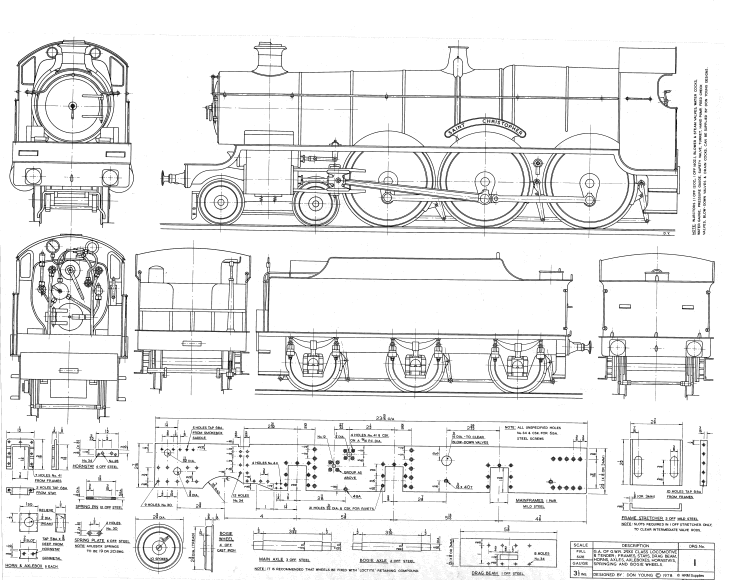

  • Sheet 1 - GA of engine & tender, mainframes, stays, drag beams, horns, axles, axleboxes, hornstays, springing & bogie wheels
  • Sheet 2 - Boiler, cylinders, smokebox, coupled wheels, connecting rods, drag box & buffers
  • Sheet 3 - Front frames, bogie, coupling rods, chassis & motion arrangement, motion details
  • Sheet 4 - Remaining reverser details, brake gear, steam & feed circuits, boiler erection & part superstructure
  • Sheet 5 - Grate, ashpan, can details & backhead fittings, vertical injector, top feed & handpump
  • Sheet 6 - Details of early style 3500 gallon tender
