GWR 43XX 3 1/2" DRAWINGS

GWR 43XX 3 1/2'' DRAWINGS
  Zoom

Image for display purposes only. Actual item may vary
Our Price:  £44.38(£36.98 Exc. VAT)Earn 44 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
–+


Part Number:  8/151
Brand:  Don Young

Share

Don young designed locomotives

  • Complete set of drawings
  • 6 sheets
  • Individual sheets also available

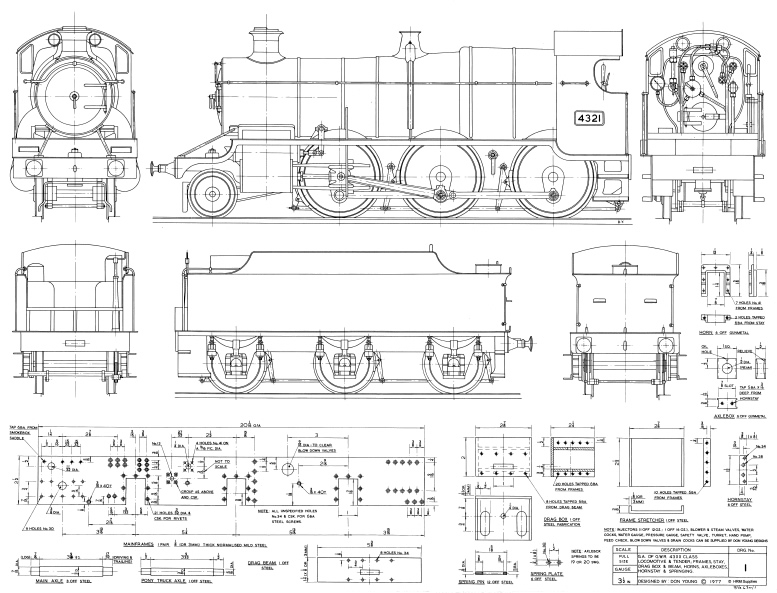

  • Sheet 1 - GA of engine & tender, frames, stay, drag box & beam, horns, axleboxes, hornstay & springing
  • Sheet 2 - Boiler, cylinders, smokebox, coupled wheels, connecting rods & buffers
  • Sheet 3 - Front frames, pony truck, coupling rods, motion plate, motion arrangement & part details
  • Sheet 4 - Remaining motion details, reverser, brake gear, steam & feed circuits, boiler erection details
  • Sheet 5 - Grate, ashpan, superstructure, backhead fittings, vertical injector, top feed & handpump
  • Sheet 6 - 3000 or 3500 gallon tender details to complete
