DORIS DRAWINGS

DORIS DRAWINGS
  Zoom
Sheet number: Complete SetSheet number: Sheet 1Sheet number: Sheet 2Sheet number: Sheet 3
Sheet number: Sheet 4Sheet number: Sheet 5Sheet number: Sheet 6Sheet number: Sheet 7
Sheet number: Sheet 8Sheet number: Sheet 9Sheet number: Sheet 10

Image for display purposes only. Actual item may vary
Our Price:  £63.00(£52.50 Exc. VAT)Earn 63 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
–+


Part Number:  6/002
Brand:  LBSC

Share

LBSC designed locomotives

  • Complete set of drawings
  • Individual sheets available

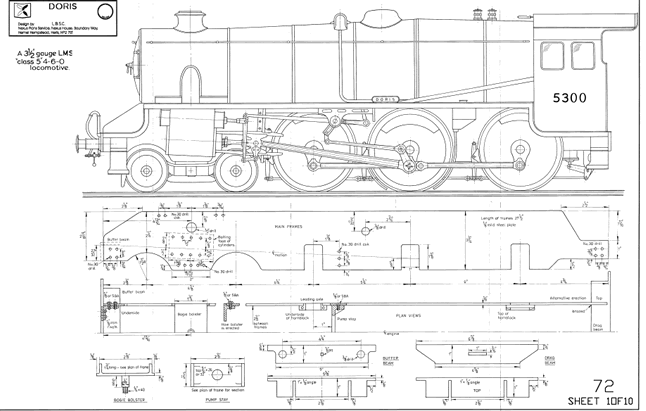

  • Sheet 1 - GA, Mainframe, buffer beam, pump stay, bogie bolster
  • Sheet 2 - Driving wheels, axles, axlboxes & horns, bogie details, coupling rods, eccentrics
  • Sheet 3 - Cylinder details, connecting rods, crossheads, guide yokes, mechanical lubricator, draincocks
  • Sheet 4 - Buffers, valve gear arrangement, reverser
  • Sheet 5 - Boiler
  • Sheet 6 - Grate & ashpan, superheater, oil check valve, regulator
  • Sheet 7 - Backhead, boiler fittings, topfeed
  • Sheet 8 - Running board & cab details
  • Sheet 9 - Tender GA, frames, wheels, axleboxes, horns, axles, handbrake details
  • Sheet 10 - Remaining tender details, engine steam brake details, buffers
