ROB ROY DRAWINGS
  Zoom
Sheet number: Complete SetSheet number: Sheet 1Sheet number: Sheet 2Sheet number: Sheet 3
Sheet number: Sheet 4Sheet number: Sheet 5Sheet number: Sheet 6

Image for display purposes only. Actual item may vary
Our Price:  £28.84
List Price:  £38.45
Saving Of:  £9.61 (25%)
(£24.03 Exc. VAT)Earn 28 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
+


Part Number:  4/074
Brand:  Martin Evans

Martin Evans designed locomotives

Save 25% off all drawings until end of November


  • Complete set of drawings
  • Individual sheets available

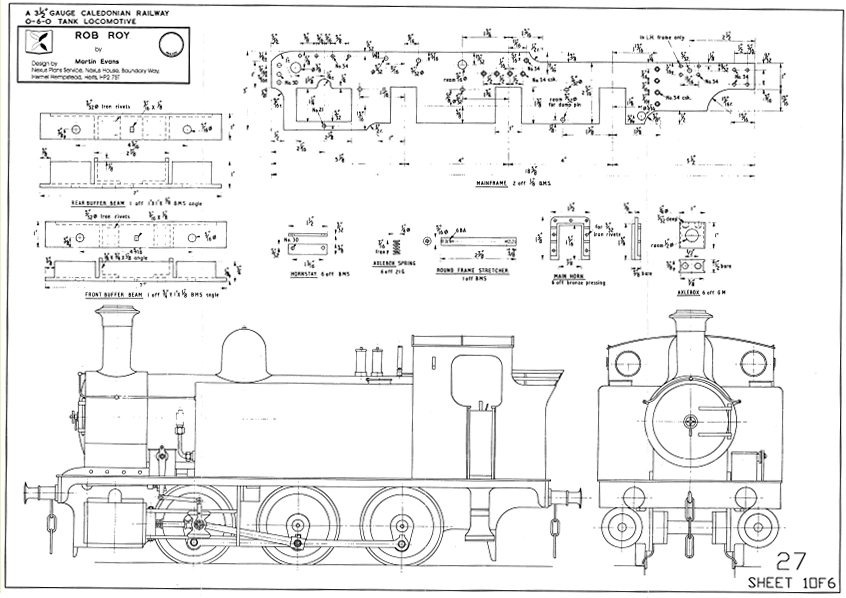

  • Sheet 1 - Mainframes, buffer beams, stretchers, GA
  • Sheet 2 - D&C wheels, axles, crankpins, connecting & coupling rods, cylinders, motion plate, crosshead, horns, axleboxes
  • Sheet 3 - Plan of valve gear, valve gear details
  • Sheet 4 - Reversing gear, Crosshead pump details, GA of mechanical lubricator
  • Sheet 5 - Boiler, smokebox, steam and exhaust arrangement, spectacle plate and cab layout
  • Sheet 6 - Superheater, regulator, grate and ashpan, footplates and tanks, safety valve, buffers, turret and whistle valve
0-6-0 Caledonian Railway locomotive in 3 1/2" gauge. Designed by Martin Evans, considered to be an ideal project for the newcomer to model engineering. Described in Model Engineer vols 124-125

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
